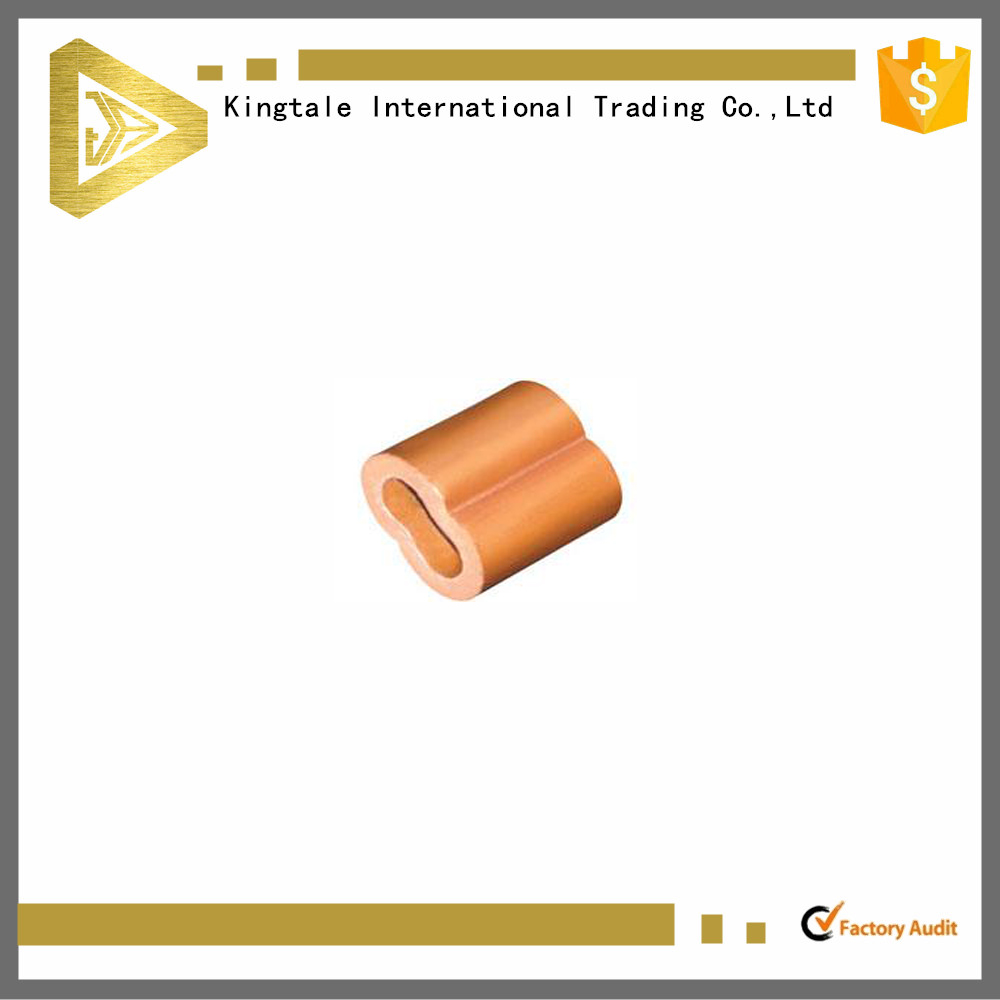

With efficient cold forming properties, the duplex copper wire rope ferrule is perfect for non-rusting permanent splices. It contains 99% pure copper, contributing to its excellent holding strength. Additionally, the return eye splice using this copper hourglass sleeve will attain 95% of the improved wire rope catalog strength when properly swaged.



When using the wire rope ferrule, the return eye slings must be properly swaged to attain enough strength.

Size	A	B	C	D	L	Weight Kgs/1000Pcs
3/64"	1/16	1/8	9/64	13/64	3/8	1.0
1/16"	3/32	11/64	11/64	1/4	25/64	1.4
5/64"	13/128	13/64	29/128	21/64	27/64	2.49
3/32"	7/64	1/4	15/64	3/8	29/64	4.0
1/8"	5/32	21/64	21/64	1/2	9/16	8.0
5/32"	3/16	27/64	3/8	19/32	5/8	12.3
3/16"	7/32	7/16	7/16	43/64	7/8	25
7/32"	1/4	33/64	15/32	23/32	7/8	32
1/4"	9/32	19/32	13/16	1/2	1  1/8	36
5/16"	3/8	23/32	21/32	1 1/64	1  1/8	64
3/8"	7/16	13/16	23/32	1 1/8	1  1/2	89
1/2"	19/32	17/64	31/32	1 15/32	1  7/8	270
