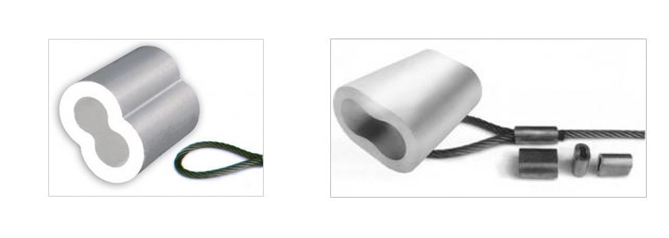

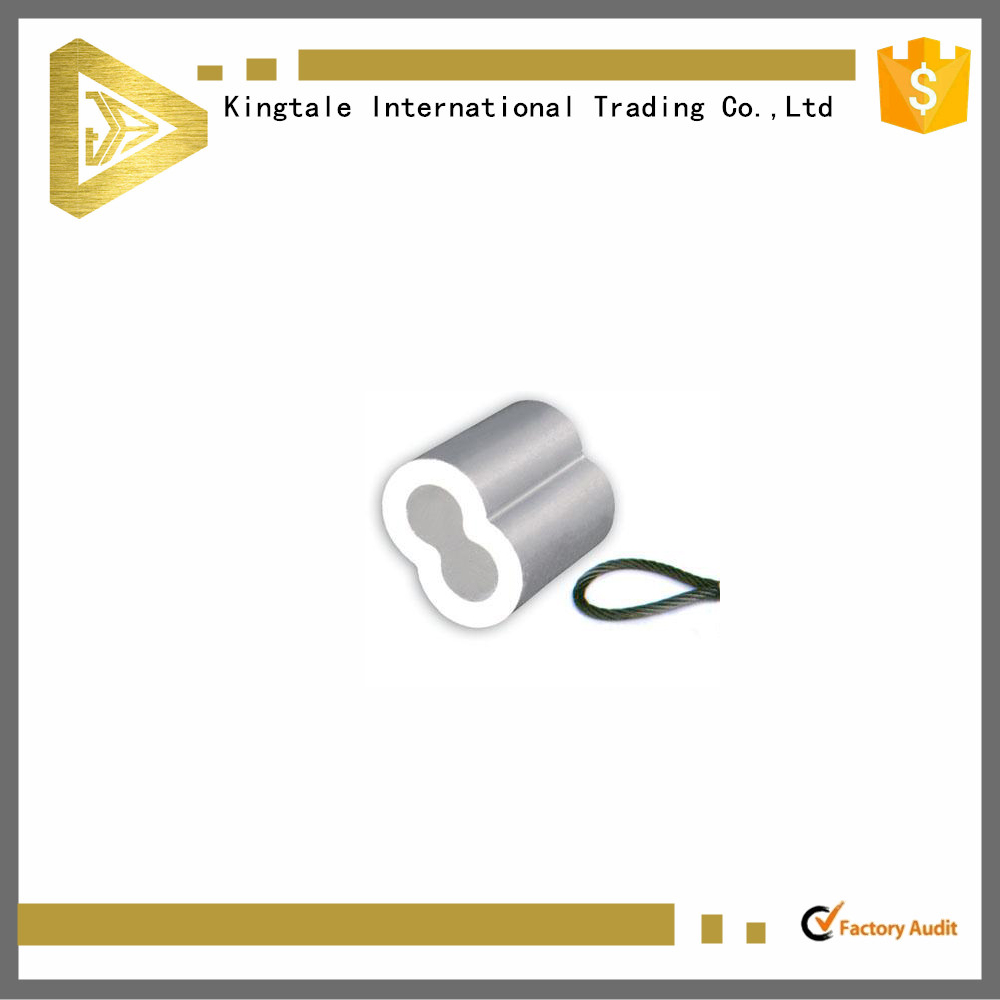

The duplex aluminum wire rope ferrule is a light weight ferrule which is manufactured into a hourglass shape .It is used to fix both ends of the steel wire rope .The aluminum duplex sleeve is made of high quality materials which meet the relevant standard to ensure the safety during the manufacturing and application process.

Size		A		B		C		D		L		Weight Kgs/1000Pcs
Inch	MM	Inch	MM	Inch	MM	Inch	MM	Inch	MM	Inch	MM
3/64	1.19	1/16	1.59	1/8	3.18	9/64	3.6	13/64	5.2	3/8	9.5	0.276
1/16	1.58	5/64	1.98	5/32	3.97	11/64	4.4	1/4	6.4	3/8	9.5	0.433
5/64	1.98	3/32	2.38	3/16	4.76	13/64	5.2	5/16	7.9	3/8	9.5	0.645
3/32	2.38	1/8	3.18	1/4	6.35	9/32	7.1	13/32	10.3	1/2	12.7	1.45
1/8	3.18	5/32	3.97	5/16	7.94	11/32	8.7	1/2	12.7	5/8	16	2.70
5/32	3.97	3/16	4.76	3/8	9.53	3/8	9.53	9/16	14.3	11/16	17	3.67
3/16	4.76	7/32	5.56	7/16	11.11	7/16	11.11	21/32	16.7	1	25	7.18
7/32	5.56	1/4	6.35	1/2	12.70	1/2	12.7	3/4	19	1-1/16	26	10.00
1/4	6.35	9/32	7.14	9/16	14.29	17/32	13.5	13/16	20.6	1-1/8	28	11.76
9/32	7.14	5/16	7.94	5/8	15.88	9/16	14.3	7/8	22.2	1-3/16	30	13.62
5/16	7.94	3/8	9.53	23/32	19.05	11/16	17.5	1-1/32	26.2	1-1/4	32	20.94
3/8	9.53	7/16	11.11	27/32	22.23	3/4	19.1	1-5/32	29.4	1-7/16	36	28.18
7/16	11.11	1/2	12.7	1	25.40	15/16	23.8	1-7/16	36.5	1-11/16	42	52.00
1/2	12.7	9/16	14.29	1-1/8	28.58	1-1/16	27	1-5/8	41.3	2	50	80.15
9/16	14.29	5/8	15.88	1-1/4	31.75	1-1/8	28.6	1-3/4	44.5	2-1/8	54	99.88
5/8	15.88	11/16	17.46	1-3/8	34.93	1-1/4	31.8	1-15/16	49.2	2-1/2	64	139.78
