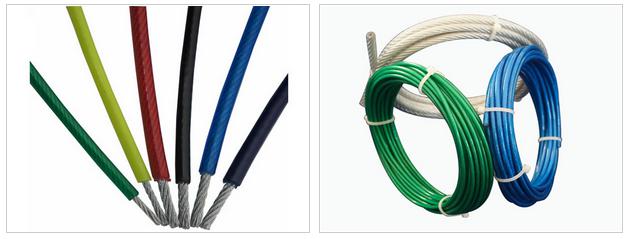

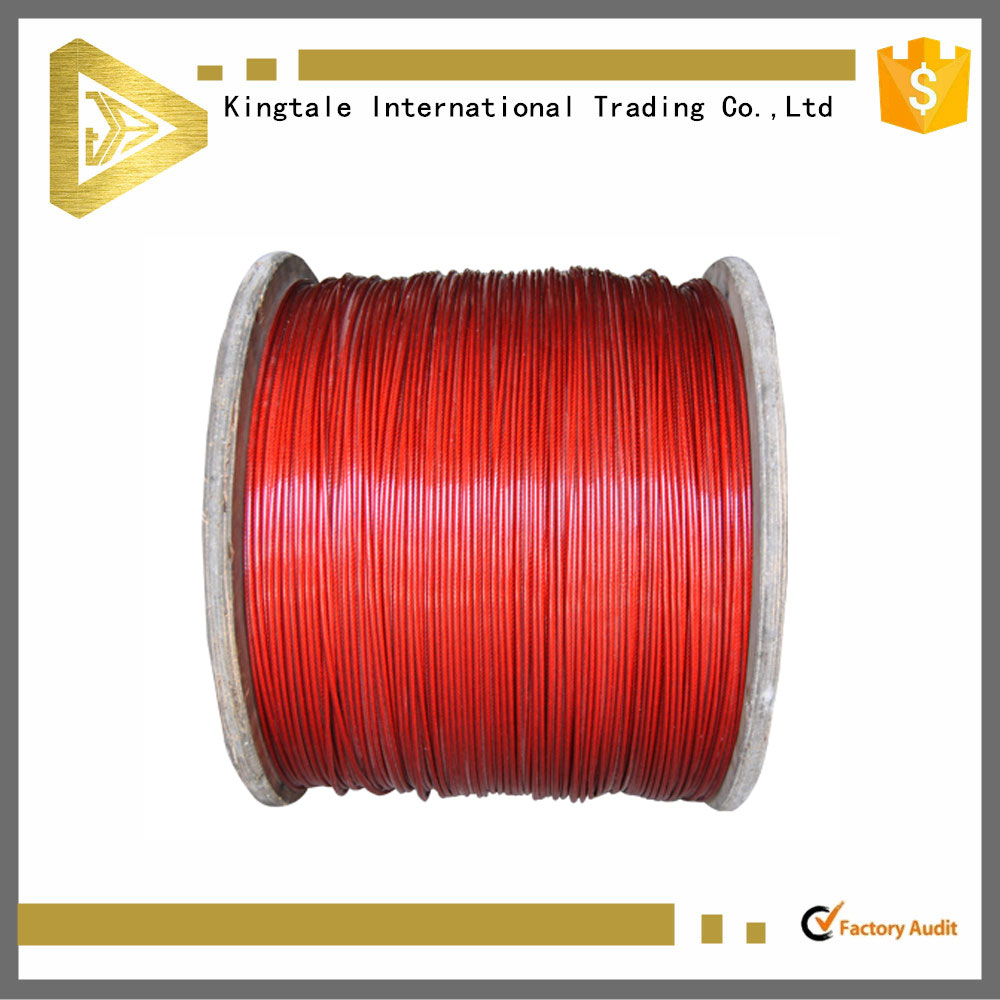

The coated cable is covered with material like PP,PE,PVC,nylon ,or other plastic .Owning to the galvanized surface, the PVC coated galvanized cable has outstanding corrosion resistance.The lifespan of our coated cable is 3.5 to 5 times of the ordinary galvanized steel wire rope when exposed in atmosphere, mine water, and seawater.The diameter and the color of the high-strength wire cable can be customized.

Diameter (In)	Coated (In)	Weight per foot (lbs)	Breaking Strength (lbs)	Construction
1/16	3/32	.0093	480	7X7
1/16	1/8	.012	480	7X7
3/32	1/8	.018	920	7X7
3/32	3/16	.026	920	7X7
1/8	3/16	.035	1,700	7X7
3/32	1/8	.019	1,000	7X19
1/8	3/16	.036	2,000	7X19
3/16	1/4	.077	4,200	7X19
3/16	5/16	.08	4,200	7X19
1/4	5/16	.12	7,000	7X19
5/16	3/8	.20	9,800	7X19
3/8	7/16	.27	14,400	7X19
