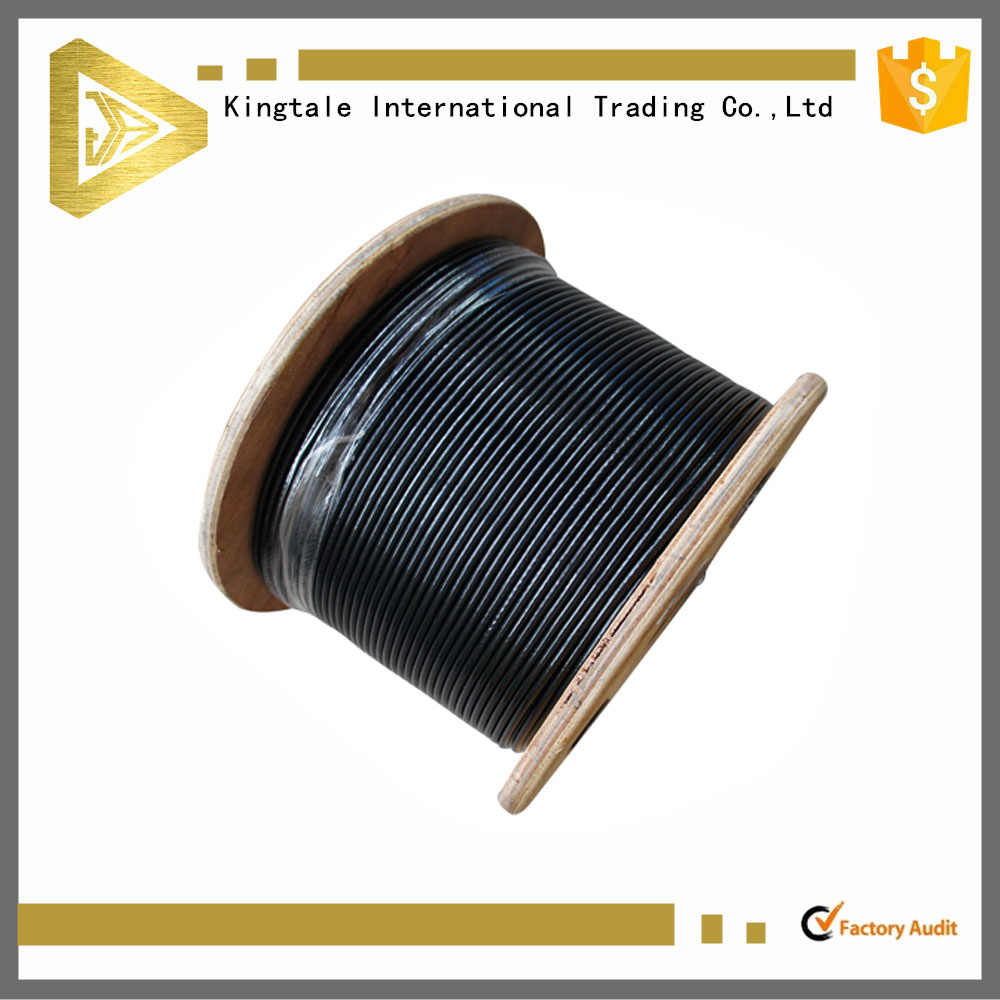

1) Product: 1.59mm black TPU coated gym steel cable
2) Construction: 7x19
3) Diameter Range: 3mm coated to 4.5mm, 4mm coated to 6mm, etc.
4) Standard: GB, ISO, DIN, ASTM
5) Packing: Plastic Reel or Wooden Reel
Outer packing: Plywood pallets
6) Characteristics: Versatile and flexible, high breaking strength, abrasion-resistant and corrosion resistant
2) Construction: 7x19
3) Diameter Range: 3mm coated to 4.5mm, 4mm coated to 6mm, etc.
4) Standard: GB, ISO, DIN, ASTM
5) Packing: Plastic Reel or Wooden Reel
Outer packing: Plywood pallets
6) Characteristics: Versatile and flexible, high breaking strength, abrasion-resistant and corrosion resistant
|
Cable Diameter (mm) |
Coating Diameter (mm) |
MBL (KGS) |
MBL (KN) |
WLL (KGS) |
WLL (KN) |
Weight Kg per 100m |
|---|---|---|---|---|---|---|
| 3 | 4.5 | 540 | 5.3 | 108 | 1.06 | 5.1 |
| 3 | 4.5 | 540 | 5.3 | 108 | 1.06 | 5.1 |
| 4 | 6 | 960 | 9.41 | 192 | 1.88 | 7 |
| 4 | 6 | 960 | 9.41 | 192 | 1.88 | 7 |
| 5 | 7 | 1500 | 14.71 | 300 | 2.94 | 13.7 |
Tennis, volleyball net,Climbing protective gear,mountaineering buckle safety rope,safety net,fitness equipment accessories,gym cables
