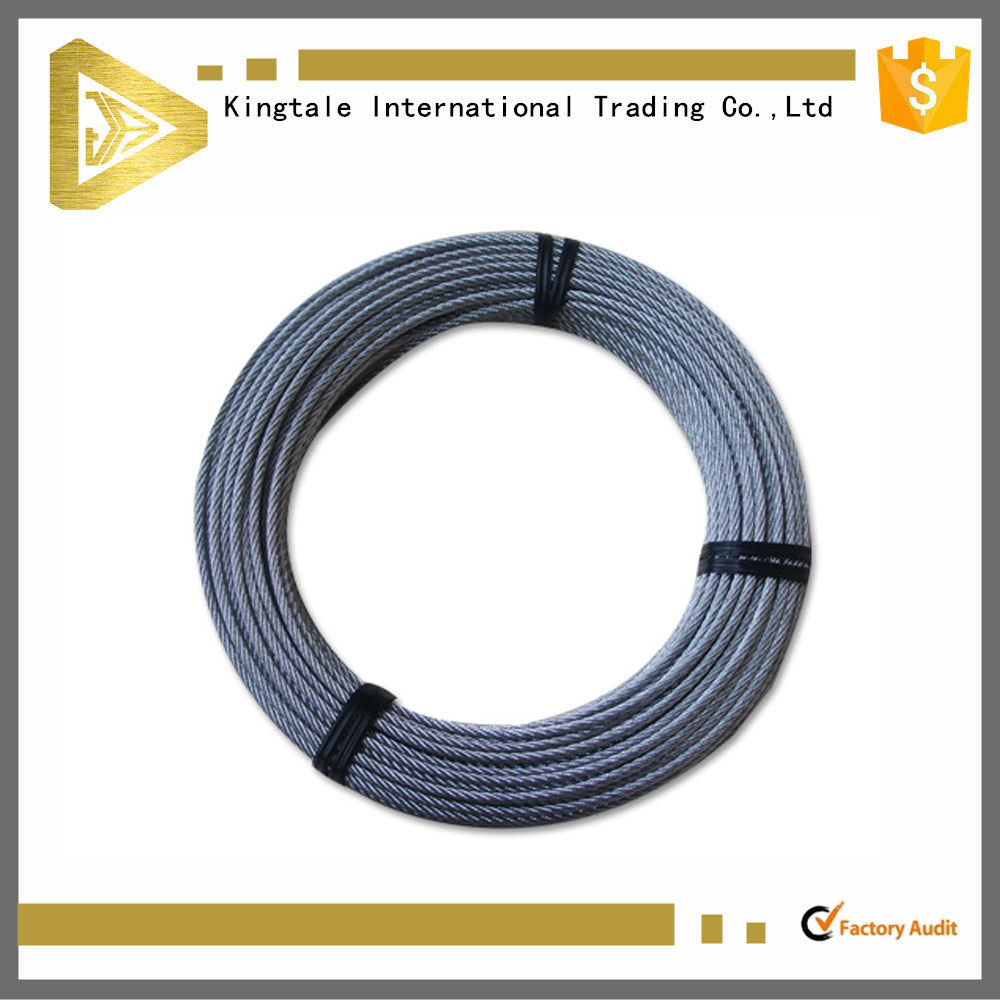

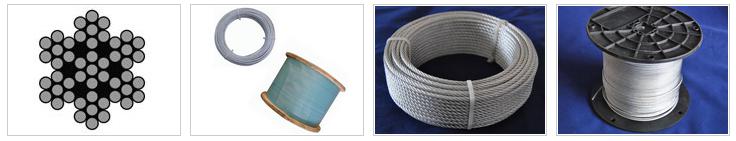

The 7X7 galvanized cable is manufactured in strict accordance with the requirement on the pulling force and tensile strength of the aircraft cable.this range of product has higher reliability, longer lifespan, and higher safety in comparison with common steel wire rope so as to serve in special environment.It is generally used as the winch cable or the control cable for the operating system and control system of airliner and transport aircraft,such as rudder ,aileron,engine,landing gear,compass needle corrector ,etc.



1. The 7X7 galvanized cable is produced with dimensional accuracy up to ±0.01mm.
2. Outstanding surface brightness and quality.
3. The galvanized aircraft cable is characterized by good corrosion resistance, high tensile strength, and outstanding fatigue resistance.
4. This steel wire rope contains little impurities. The stable chemical composition makes the product durable for use.
5. Made of superior 60#,65#,or 70# carbon steel ,the 7X7 galvanized cable is processed by hot galvanizing or electro galvanizing technology.
6. This range of product can be packed with wooden reel or in coil.

Part #	Diameter	Type	Breaking Strength (lbs)	Wt (lbs) / 1000 Fts
2G7047	3/64"	7 X 7	270	5
2G7062	1/16"	7 X 7	480	8
2G7078	5/64"	7 X 7	650	12
2G7093	3/32"	7 X 7	920	16
2G7125	1/8"	7 X 7	1,700	28
2G7156	5/32"	7 X 7	2,600	46
2G7187	3/16"	7 X 7	3,700	64
2G7250	1/4"	7 X 7	6,100	106

By virtue of high temperature resistance ,optimal fatigue resistance,big breaking force,long lifespan and good durability,the aircraft steel wire cable is applicable for the industry such as aviation ,coal,petroleum,metallurgy,ship,bridge,electric power,rubber,tourism ,water conservancy,chemical industry,etc.The 7X7 galvanized cable can be manufactured according to advanced international standard,including ISO,BS,DIN,JIS,ABS,and LR.
