The wire rope clip is a commonly used serviceable accessory in condition that there is something wrong with splicing or socketing of the wire .A rope clip can help to hold two ends of the rope together firmly by providing temporary joints to create a strong connection.It can also be applied to the rope end ready for fixing so as to form a complete loop.Special specification and marks of this wire rope clamp can be made according to clients' requirements. The wire rope accessory has two types as below:

Standard: DIN741
Material: Stainless Steel AISI304 or AISI316
Surface: Stainless steel
Size: 3mm-50mm

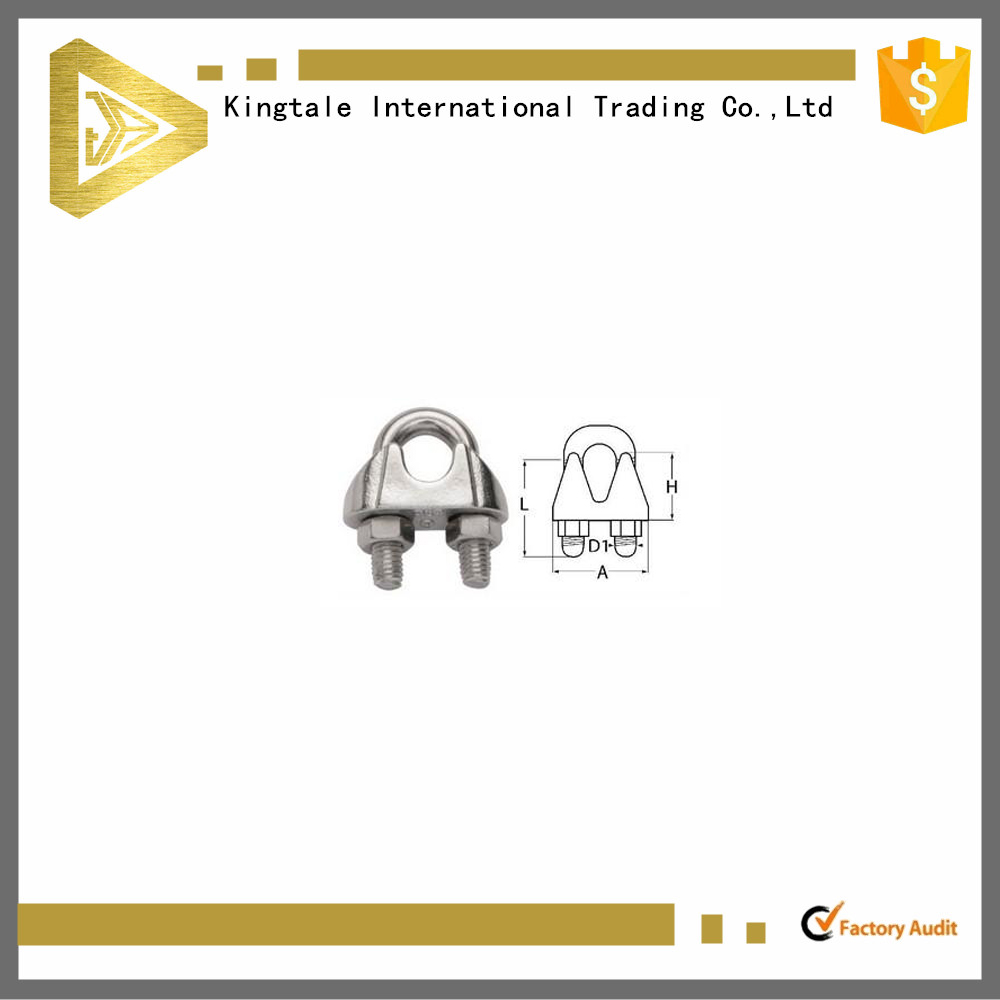

Size (mm)	A	D1	L	H
	(mm)	(mm)	(mm)	(mm)
2	16	M3	10	9
3	21	M4	12	10
4	22	M4	12	10
5	23	M5	13	10
6	26	M5	15	11
8	30	M6	19	15
10	34	M8	22	17
12	40	M10	30	21
16	50	M12	33	26
19	54	M12	38	30
22	61	M14	44	34
25	65	M14	45	37
