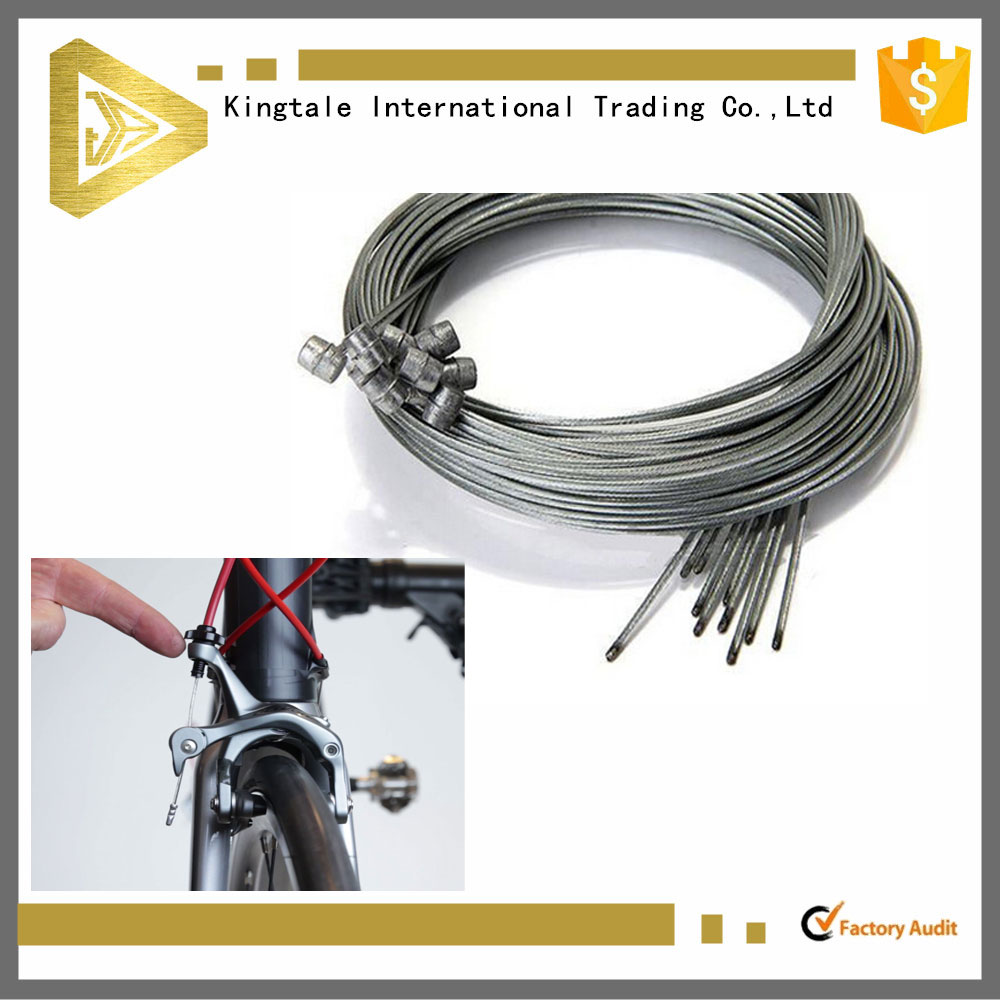

The inner wire control cable is made of 304 or 316 stainless steel with galvanization technology . The features of the automobile control cable include the smoother surface,higher strength,stronger breaking force,better perpendicularity and longer fatigue life in comparison with the ordinary steel wire rope.Generally ,it functions as the brake cable and control cable for automobile,motorcycle,bicycle and special purpose vehicle.

wire drawing machine, steel wire stranding machine, and cable twisting machine and many other production equipment have been introduced form abroad for manufacturing world level inner wire control cable.The galvanized cable with high quality can take the place of imported products.

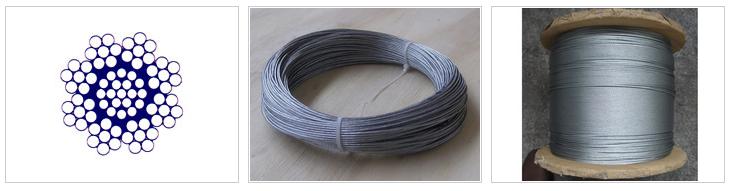

Table 1.Construction 8X7+1X19
Dia(mm)	Actual Diameter	Kg/100m	Breaking Load		Standard Packing Length per Wooden Reel (meter)
			KN	KP
1.5	1.45-1.55mm	1.04	2.45	250	5,000-12,000meters
1.8	1.77-1.87mm	1.51	3.53	360	5,000-10,000meters
Table 1.Construction 8X7+1X19
Dia(mm)	Actual Diameter	Kg/100m	Breaking Load		Standard Packing Length per Wooden Reel (meter)
			KN	KP
1.5	1.50-1.60mm	0.99	1.90	194	5,000-12,000meters
1.8	1.73-1.83mm	1.39	2.73	280	5,000-10,000meters

直径	参考重量	最小破断拉力（KN）
Diameter	Approx Weight	Min.Breaking Load
(mm)	(kg/100m)	Galvanized	Stainless Steel
1.2mm	0.72	1.470	1.370
1.5mm	1.12	2.450	1.860
1.6mm	1.27	2.740	2.100
1.8mm	1.61	3.330	2.400
2.0mm	2.00	4.170	3.040
2.5mm	3.10	6.520	3.580
3.0mm	4.50	8.330	5.590
3.5mm	6.13	10.800	7.150
4.0mm	8.00	13.700	9.300
