The zinc coated thimble refrains from the wearing and deformation of the wire rope hole.The service life of galvanized wire rope thimble is greatly prolonged owing a lot to its surface treatment. The galvanized wire rope thimble will be packed with PP bag or carton and placed onto the tray before delivery.Special specifications and marks of accessory can be customized according to customer requirements.
|

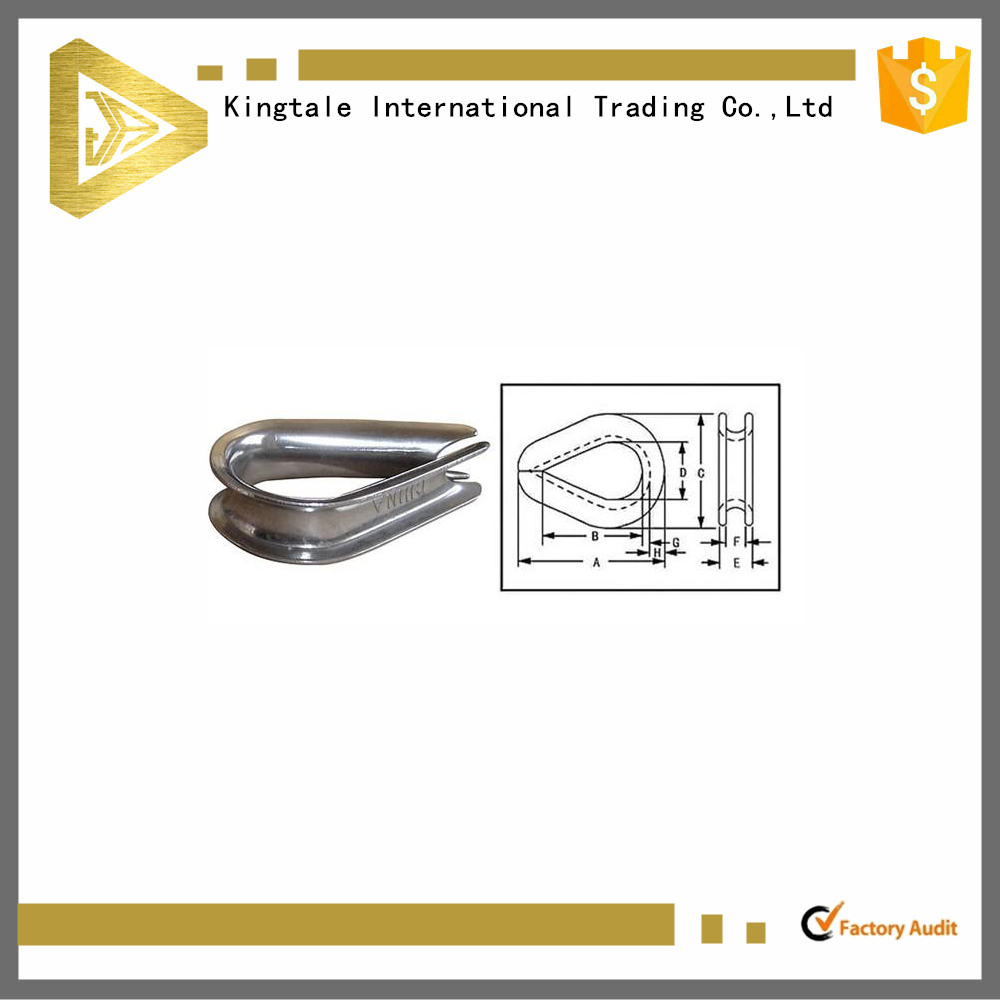

Rope diameter |
A |
B |
H |
J |
Weight |
|---|---|---|---|---|---|
|
3/64-1/16-5/64 |
43/64 |
0.35 |
3/32 |
3/16 |
0.2 |
|
3/32-7/64-1/8 |
45/64 |
0.35 |
9/64 |
7/32 |
0.4 |
|
5/32 |
51/64 |
0.40 |
11/64 |
7/32 |
0.6 |
|
3/16 |
1 |
0.50 |
13/64 |
5/16 |
1.0 |
|
7/32-1/4 |
1 13/32 |
0.70 |
17/64 |
13/32 |
1.5 |
|
9/32-5/16 |
1 51/64 |
0.90 |
21/64 |
7/16 |
3.5 |
|
3/8 |
2 |
1.00 |
25/64 |
5/8 |
8.5 |
